LIGHT CONVERSION

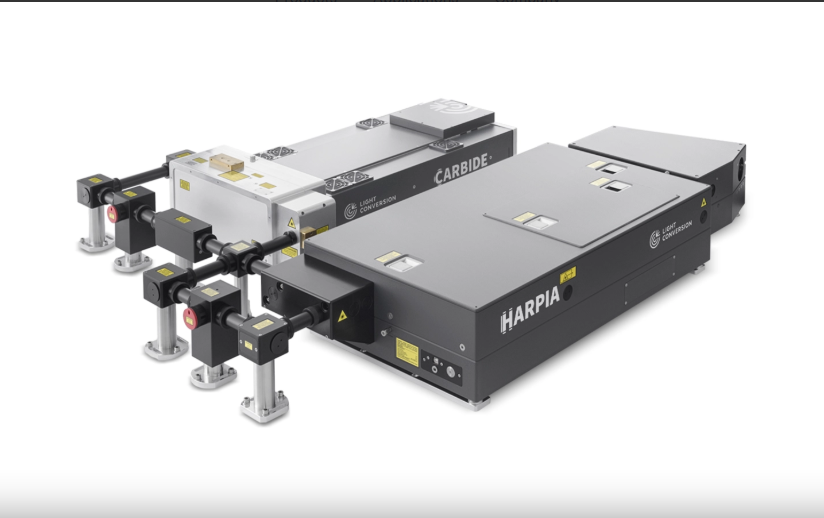

HARPIA-TB
FEATURES
*Provides an additional temporal dimension to pump‑probe measurements
*Provides additional insight into complex photodynamic systems
*Full control of the third beam:
  – Polarization (using a manual or automated Berek polarization compensator)
  – Intensity (using a manual or an automated continuously variable neutral density filter)
  – Delay (using an automated 2 ns or 4 ns optical delay line)
*Z-scan support



HARPIA-TF
FEATURES
*Straightforward operation
*Automated spectral scanning and calibration of upconversion crystal and prism
*Easy switching between fluorescence upconversion and TCSPC modes
*Measurement of fluorescence dynamics in the femtosecond to microsecond range
*Full control over polarization, intensity, delay and wavelength

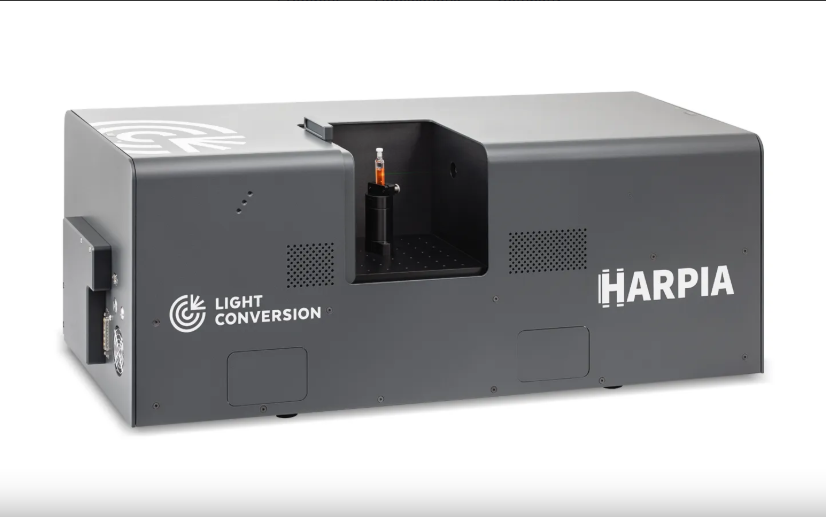

HARPIA-TA
FEATURES
*350 – 1100 nm probe wavelength range
*Ample sample space to fit a cryostat or liquid sample pump
*Beam monitoring and self‑calibration
*Simple integration of any user‑preferred external spectrograph
*Transient absorption and Z-scan experiments on the same device

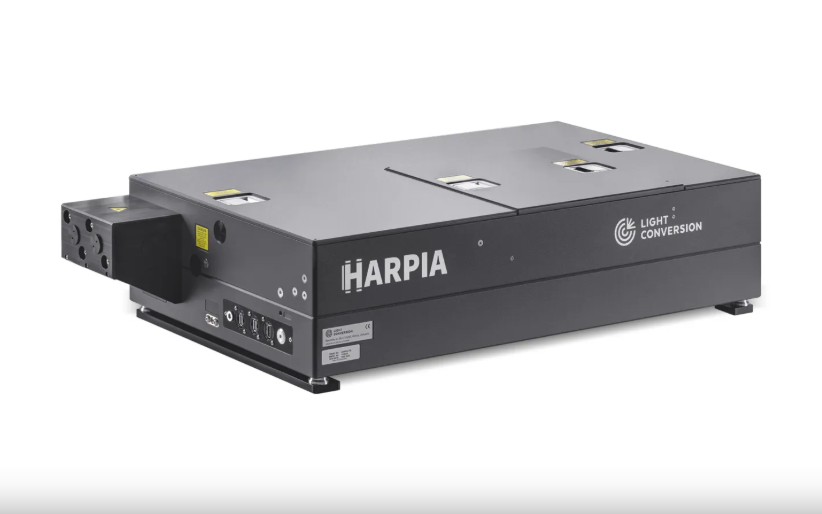

HARPIA
FEATURES
*Femtosecond multi-pulse transient
absorption and reflection measurements
*Femtosecond fluorescence upconversion
*Time-resolved femtosecond stimulated Raman scattering (FSRS)
*Hundred picoseconds-to-microsecond time-correlated single-photon counting (TCSPC)

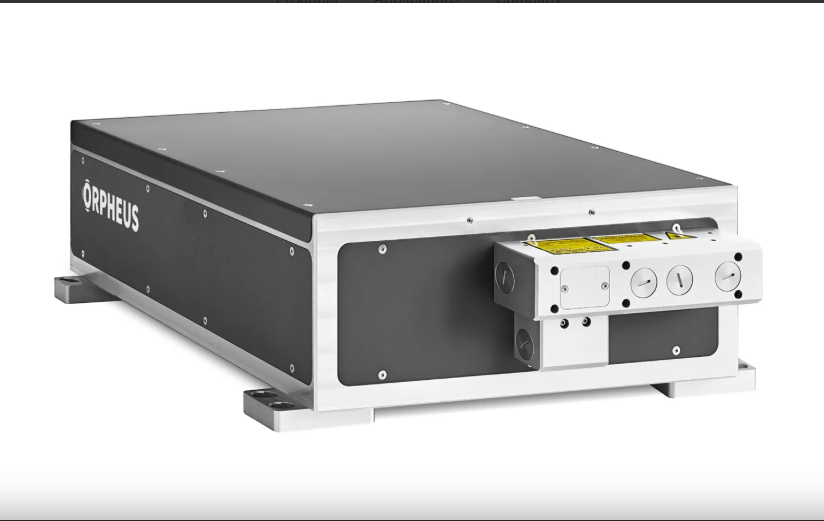

OPCPA-HR
FEATURES
*Pulse repetition rates up to 200 kHz
*Average power >54 W at 200 kHz
*Passive CEP stabilization available
*Pulse duration down to <9 fs
*Arbitrary division of OPCPA pulse repetition rate possible
*Convenient integrated control and monitoring software
*Compact footprint

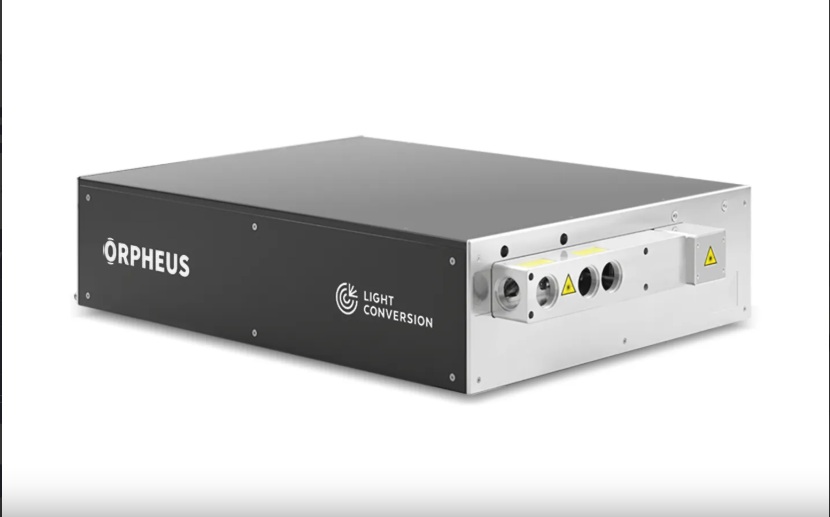

OPCPA-HE
FEATURES
*Multi-TW peak power pulses produced at up to 1 kHz repetition rate
*Pre-pulse contrast exceeding 1012 achievable without complex and lossy nonlinear pulse cleaning techniques
*Sub-220 mrad CEP noise and <1 % energy stability maintained throughout full day of operation
*Pulse duration down to < 9 fs
*Safe and simple spectral-temporal shaping of output pulses possible
*Integrated control and diagnostics system
*Less than 1 hour warm-up time

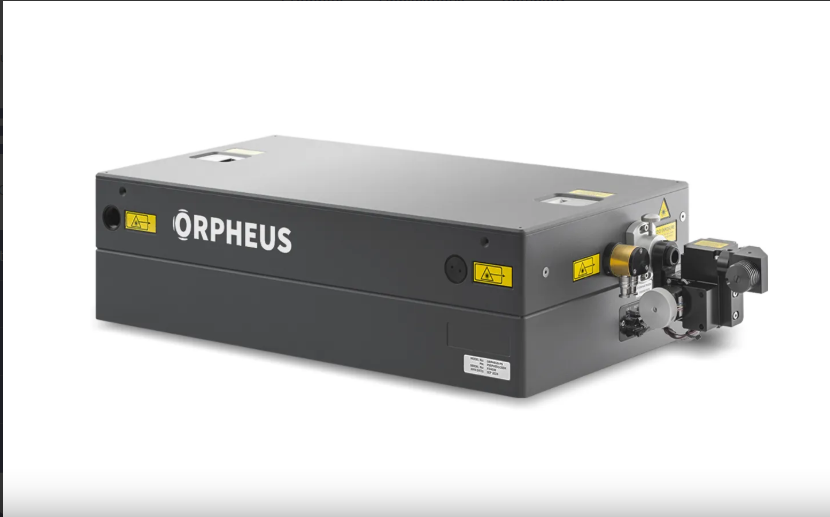

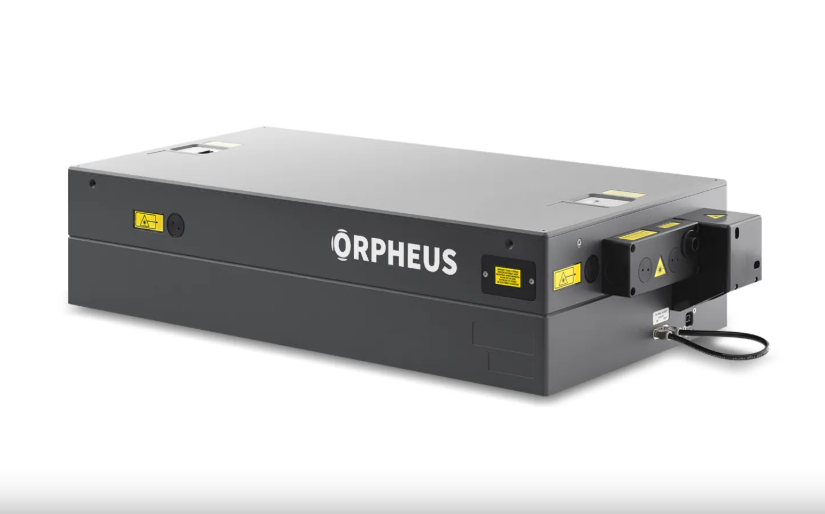

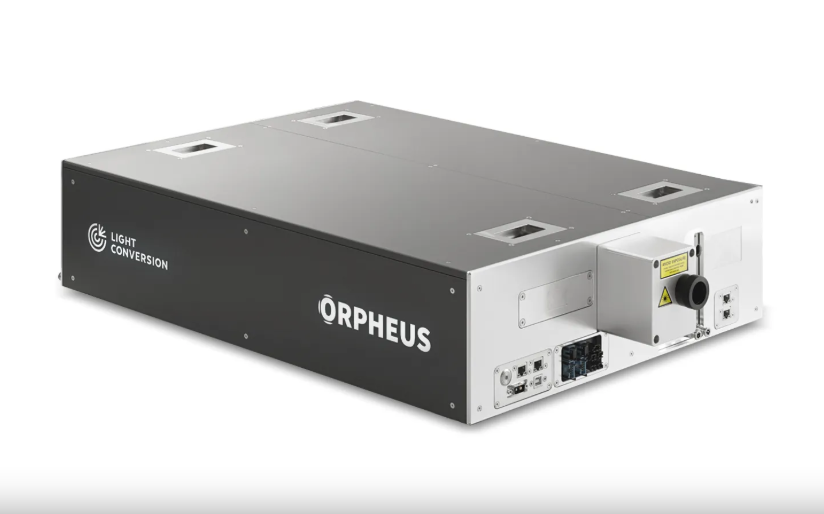

ORPHEUS-OPCPA
FEATURES
*<6 fs transform-limited pulse duration
*Up to 100 kHz repetition rate
*Up to 22 W output power
*Up to 1.1 mJ output energy

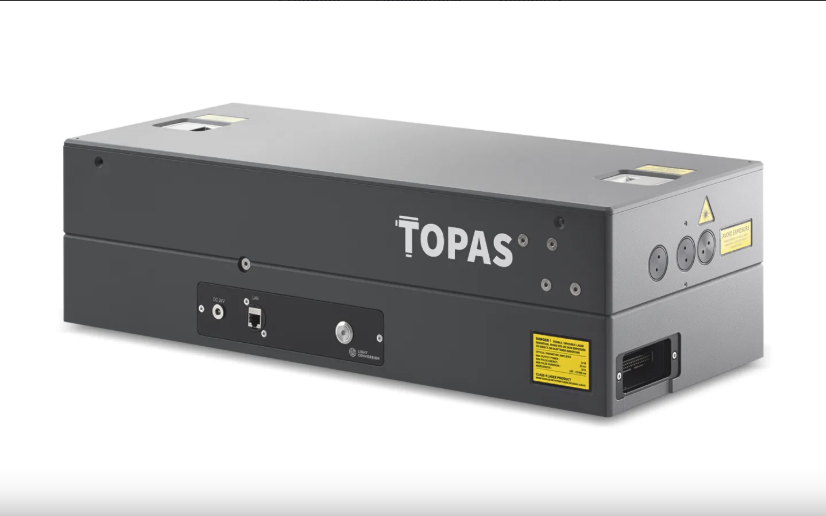

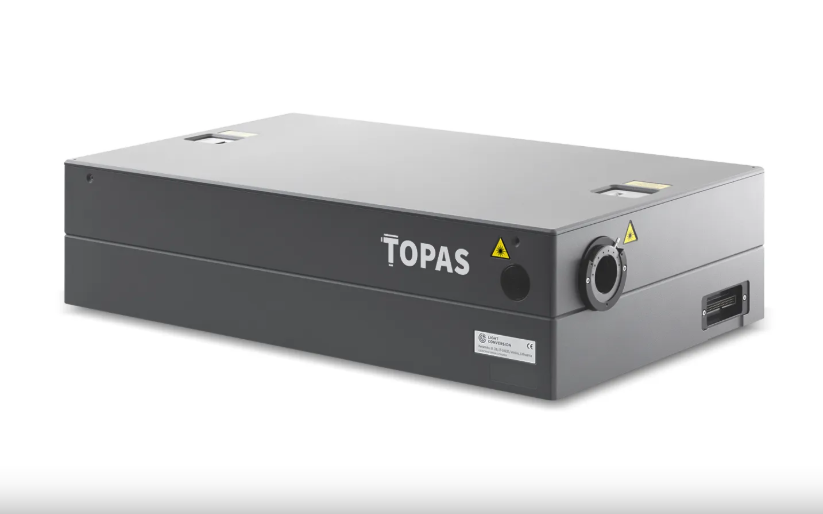

TOPAS-HR
FEATURES
*Repetition rate up to 1 Mhz
*Pump energy up to 0.2 mJ
*Tuning range spanning from 290 nm to 2.6 μm, computer controlled
*High output stability throughout the entire tuning range



TOPAS-800-PS
FEATURES
*Picosecond operation with pump energy up to 5 mJ
*Energy conversion into the parametric radiation > 30 %
*Tuning range spanning from 189 nm to 20 μm, computer controlled
*Grating frequency selector for bandwidth limited output



TOPAS-SHBC-400-WL
FEATURES
*Converts femtosecond pulses to < 20 cm-1 bandwidth
*Pump energy up to 4 mJ
*Tuning range spanning from 240 nm to 10 µm, computer controlled
*High output stability throughout the entire tuning range
*Grating frequency selector for bandwidth limited output



TOPAS-TWINS
FEATURES
*Two independently tunable outputs with single white light seed
*Energy conversion into the parametric radiation > 30 %
*Tuning range spanning from 240 nm to 20 μm in each channel, computer controlled
*High output stability throughout the entire tuning range



TOPAS-HE-Prime
FEATURES
*Pump energy up to 60 mJ
*Energy conversion into the parametric radiation 30 – 50 %
*Tuning range spanning from 189 nm to 20 μm, computer controlled
*High output stability throughout the entire tuning range
*Fresh pump channel improves temporal and spatial properties of sum-frequency     options
